Hog Scoop strange vibration
- shivolastudio
- Topic Author
- Offline
- New Member
Less
More
11 years 3 months ago #20424
by shivolastudio
Hog Scoop strange vibration was created by shivolastudio
Hi bros! I want ask you for some advice. In our new hog we can hear some bad vibration around mid-bass frequencies and (at loud volumes) also a bit lower than mid-bass. We don't know why. I've seen some other finished projects and i notice some differences.
Our Hog is made of poplar plywood, little errors in the project are of 2 mm max (position of the parts). We used wood vinylic glue for all the pices, exept "H" and the higher part of "br. 4".
For first my question are:
- The problem could be the cable, but we ascertain that it was secured glued in the wood without possibilities of vibration in the wood.
- Between the driver and the wood there's nothing, do u think i must place something in?
- I've noticed that in some other project people used more screws! We used 7 screws max for piece, in some others we used also 3 or 2.
- It's possible that some some woods arent glued weel, so they can make vibrations?
Thank you very much
Our Hog is made of poplar plywood, little errors in the project are of 2 mm max (position of the parts). We used wood vinylic glue for all the pices, exept "H" and the higher part of "br. 4".
For first my question are:
- The problem could be the cable, but we ascertain that it was secured glued in the wood without possibilities of vibration in the wood.
- Between the driver and the wood there's nothing, do u think i must place something in?
- I've noticed that in some other project people used more screws! We used 7 screws max for piece, in some others we used also 3 or 2.
- It's possible that some some woods arent glued weel, so they can make vibrations?
Thank you very much
Please Log in or Create an account to join the conversation.
- bee
- Offline
- Platinum Member
Less
More
- Posts: 2090
- Thank you received: 34
11 years 3 months ago #20431
by bee
Replied by bee on topic Re: Hog Scoop strange vibration
would help if you posted pics, you say 2mm out, do you mean 2mm gaps in some of your joins....
Please Log in or Create an account to join the conversation.
- shivolastudio
- Topic Author
- Offline
- New Member
Less
More
- Posts: 4
- Thank you received: 0
11 years 3 months ago #20433
by shivolastudio

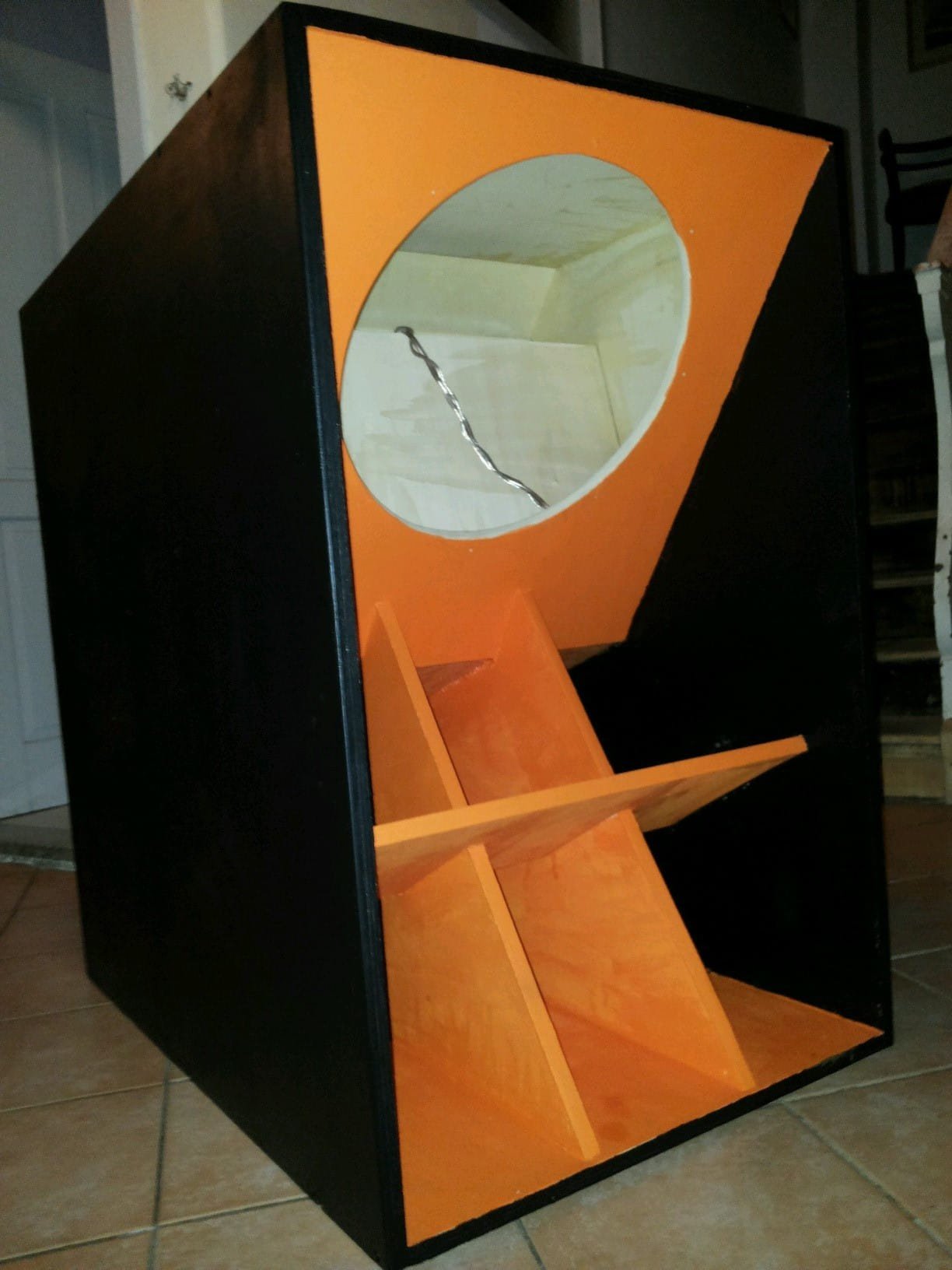

Replied by shivolastudio on topic Re: Hog Scoop strange vibration
Please Log in or Create an account to join the conversation.
- tony.a.s.s.
- Offline
- Moderator
Less
More
- Posts: 1344
- Thank you received: 12
11 years 3 months ago #20434
by tony.a.s.s.
Peace and goodwill to all speaker builders
Replied by tony.a.s.s. on topic Re: Hog Scoop strange vibration
Just get inside and hit as many panels as you can with a Rubber mallet. You will soon find out whether you have a loose panel or not.
Peace and goodwill to all speaker builders
Please Log in or Create an account to join the conversation.
- shivolastudio
- Topic Author
- Offline
- New Member
Less
More
- Posts: 4
- Thank you received: 0
11 years 3 months ago #20435
by shivolastudio
Replied by shivolastudio on topic Re: Hog Scoop strange vibration
Ok and finaly, if i find it wath i should do in your opinion? More screws?
Please Log in or Create an account to join the conversation.
- tony.a.s.s.
- Offline
- Moderator
Less
More
- Posts: 1344
- Thank you received: 12
11 years 3 months ago #20436
by tony.a.s.s.
Peace and goodwill to all speaker builders
Replied by tony.a.s.s. on topic Re: Hog Scoop strange vibration
Try to get some glue into the joints and definitely put more screws in.
Occasionally, I've had this problem with cabs that have been dropped form a great height, and because all the internal joints are grooved, I've been able to drill additional holes and pump glue directly into the joints and add more screws. This has always cured the problem.
Occasionally, I've had this problem with cabs that have been dropped form a great height, and because all the internal joints are grooved, I've been able to drill additional holes and pump glue directly into the joints and add more screws. This has always cured the problem.
Peace and goodwill to all speaker builders
Please Log in or Create an account to join the conversation.
- shivolastudio
- Topic Author
- Offline
- New Member
Less
More
- Posts: 4
- Thank you received: 0
11 years 3 months ago #20437
by shivolastudio
Replied by shivolastudio on topic Re: Hog Scoop strange vibration
Thank u very much from italy
