Cubo 15
- Tommyj1989
-
- Offline
- New Member
-
Less
More
4 years 3 months ago #24602
by Tommyj1989
Replied by Tommyj1989 on topic Cubo 15

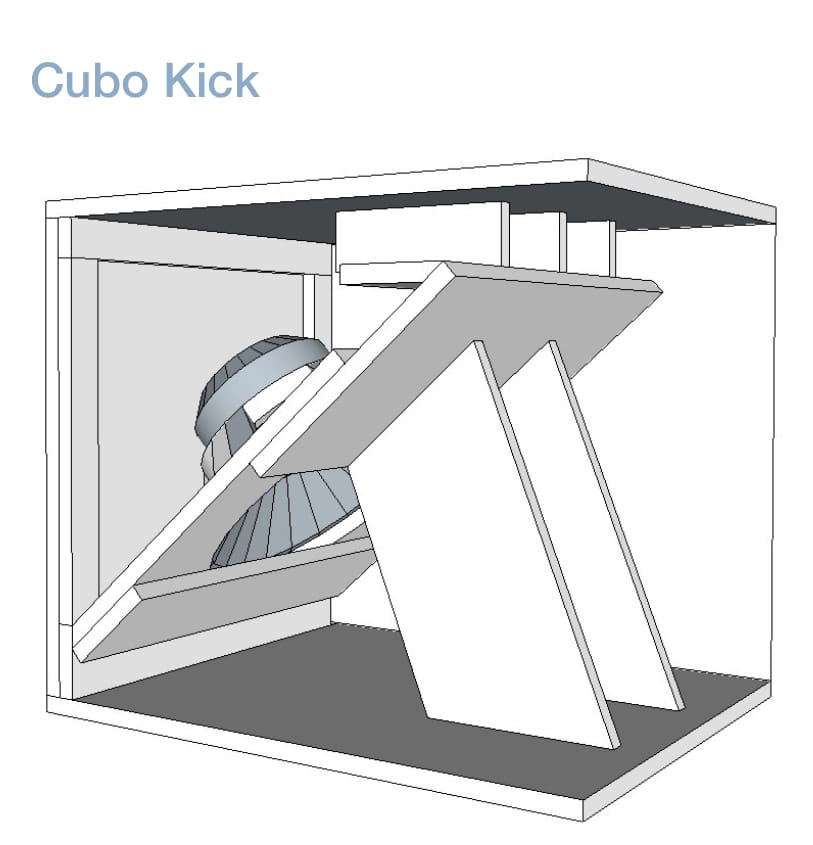

I’m building a cubo 15 sub and a cubo 15 kick please can you tell me the best driver to put in each
Delta 15Lfc
Delta 15a
Kappa 15Lfa
Kappa 15a
It’s only going to be for home use really but some advice would be great. Thanks
Delta 15Lfc
Delta 15a
Kappa 15Lfa
Kappa 15a
It’s only going to be for home use really but some advice would be great. Thanks
Please Log in or Create an account to join the conversation.
- Cubo15
-
- Offline
- Platinum Member
-
Less
More
- Posts: 916
- Thank you received: 131
4 years 3 months ago #24610
by Cubo15
Replied by Cubo15 on topic Cubo 15
Well, let's slim you choice down immediately to the Kappa 15Lfa or the Kappa 15a, both drivers will work in Cubo Kick 15 and Cubo 15 (Extended for both). If you're ever going to use this for PA, I would slightly favor the 15lf for Cubo 15 but not necessarily for Cubo Kick. As you're going to use this at home you can get 2 of the same drivers and put one in each.
Best regards Cubo
Best regards Cubo
Please Log in or Create an account to join the conversation.
- A King
-
- Offline
- New Member
-
Less
More
- Posts: 1
- Thank you received: 0
3 years 7 months ago #24779
by A King
Replied by A King on topic Cubo 15
Thank you for sharing
Please Log in or Create an account to join the conversation.
- nemsik
-
- Offline
- New Member
-
Less
More
- Posts: 7
- Thank you received: 0
3 years 6 months ago #24781
by nemsik
Replied by nemsik on topic Cubo 15
A few years ago I build Cubo 15 STANDARD, and I used a driver where Qts x Vas = 50.3
So I should make a Cubo Extended or Extra Extended.
Anybody tell me a general difference between the Standard and Extended version when I use a driver that has Qts x Vas = 50.3 ?
I guess that this affects the frequency response, but how?
What else?
Thank you!
So I should make a Cubo Extended or Extra Extended.
Anybody tell me a general difference between the Standard and Extended version when I use a driver that has Qts x Vas = 50.3 ?
I guess that this affects the frequency response, but how?
What else?
Thank you!
![:) :)](/media/kunena/emoticons/8.png)
Please Log in or Create an account to join the conversation.
- Cubo15
-
- Offline
- Platinum Member
-
Less
More
- Posts: 916
- Thank you received: 131
3 years 6 months ago - 3 years 6 months ago #24782
by Cubo15
Replied by Cubo15 on topic Cubo 15
Cubo Standard has the largest rear chamber with the shortest horn path length, aiming at drivers with a medium to high Vas and Qts. Cubo Extended trades some of that rear chamber volume for extra horn length, the extra horn length tunes the Cubo lower but then again the loss of rear chamber volume increases that tuning. So the overall tuning doesn't really change, what changes is the flatness of the frequency response and driver-to-Cubo matching based on the Vas and Qts. Same applies to Extra Extended, naturally for lower Vas and medium to low Qts drivers.
If you cannot interpret Vas and Qts separately, use the product rule. So what Vas and Qts are we talking about?
If you cannot interpret Vas and Qts separately, use the product rule. So what Vas and Qts are we talking about?
Last edit: 3 years 6 months ago by Cubo15.
Please Log in or Create an account to join the conversation.
- nemsik
-
- Offline
- New Member
-
Less
More
- Posts: 7
- Thank you received: 0
3 years 6 months ago #24783
by nemsik
Replied by nemsik on topic Cubo 15
Thank you for your answer!
We are talking about Vas = 247L and Qts = 0.24, so I made mistake because Qts x Vas = ~59.3 but still I should use extended version, right?
"So the overall tuning doesn't really change, what changes is the flatness of the frequency response and driver-to-Cubo matching based on the Vas and Qts"
I was afraid that I changed tuning dramatically...
Should I remake my cubo to Extended version? What do you think about it? Of course, I can little flatness the frequency response by the sound processor.
Maybe do you need additional driver parameters?
We are talking about Vas = 247L and Qts = 0.24, so I made mistake because Qts x Vas = ~59.3 but still I should use extended version, right?
"So the overall tuning doesn't really change, what changes is the flatness of the frequency response and driver-to-Cubo matching based on the Vas and Qts"
I was afraid that I changed tuning dramatically...
Should I remake my cubo to Extended version? What do you think about it? Of course, I can little flatness the frequency response by the sound processor.
Maybe do you need additional driver parameters?
Please Log in or Create an account to join the conversation.
- MarioJ77
-
- Offline
- New Member
-
Less
More
- Posts: 1
- Thank you received: 0
3 years 6 months ago #24784
by MarioJ77
Replied by MarioJ77 on topic Cubo 15
I plan to build a Cubo 15 speaker box The Box 15LB075-UW4 with the following features: Fs 40Hz, Re 3.6 Ohm
Qms 8.48, Qts 0.4, Qes 0.38, Vas 158.91L, Mms 0.12kg, Cms 0.14mm / N, BL 16.7 Tesla m, Sd 0.09mm2, Xmax + -4mm.
I'm wondering which Cubo 15 plan I need or to do some other box construction for this speaker.
Thanks in advance for replying and donating the plan for the suggested box.
Qms 8.48, Qts 0.4, Qes 0.38, Vas 158.91L, Mms 0.12kg, Cms 0.14mm / N, BL 16.7 Tesla m, Sd 0.09mm2, Xmax + -4mm.
I'm wondering which Cubo 15 plan I need or to do some other box construction for this speaker.
Thanks in advance for replying and donating the plan for the suggested box.
Please Log in or Create an account to join the conversation.
- Cubo15
-
- Offline
- Platinum Member
-
Less
More
- Posts: 916
- Thank you received: 131
3 years 6 months ago #24788
by Cubo15
Replied by Cubo15 on topic Cubo 15
@nemsik:
@MarioJ77:You can calculate which Cubo version you need, using the Qts x Vas rule posted on the plans page: Cubo 15 Plans
A Cubo 15 is a safe bet, another cabinet might be better depending on your specific needs, which I would need to know before I'm able to answer.
Nahh, I wouldn't do that. I've tried a similar driver in Cubo 15 Standard and it measured pretty well. Flat frequency response is imho a bit overrated, dips and peaks due to indoor room-nodes will be much larger and processing or placement should fix that.Should I remake my cubo to an Extended version?
@MarioJ77:You can calculate which Cubo version you need, using the Qts x Vas rule posted on the plans page: Cubo 15 Plans
A Cubo 15 is a safe bet, another cabinet might be better depending on your specific needs, which I would need to know before I'm able to answer.
The following user(s) said Thank You: dajnaton
Please Log in or Create an account to join the conversation.
- nemsik
-
- Offline
- New Member
-
Less
More
- Posts: 7
- Thank you received: 0
3 years 6 months ago #24793
by nemsik
Replied by nemsik on topic Cubo 15
Thank you for the explanation ![:) :)](/media/kunena/emoticons/8.png)
Cubo is a great project, thanks for sharing it on the Internet!
![:) :)](/media/kunena/emoticons/8.png)
Cubo is a great project, thanks for sharing it on the Internet!
Please Log in or Create an account to join the conversation.
- dajnaton
-
- Offline
- New Member
-
Less
More
- Posts: 1
- Thank you received: 0
3 years 5 months ago #24815
by dajnaton
Replied by dajnaton on topic Cubo 15
Hello Cubo15, greetings from Venezuela. I would like to know where to download the plans for the 15 cube version using 15mm wood sheets.
Would you recommend MDF?
I have been using Mini Scoop 18 for years and would like to change them for greater portability.
Excuse my english, use google translator.
dajnaton@gmail.com
Would you recommend MDF?
I have been using Mini Scoop 18 for years and would like to change them for greater portability.
Excuse my english, use google translator.
dajnaton@gmail.com
